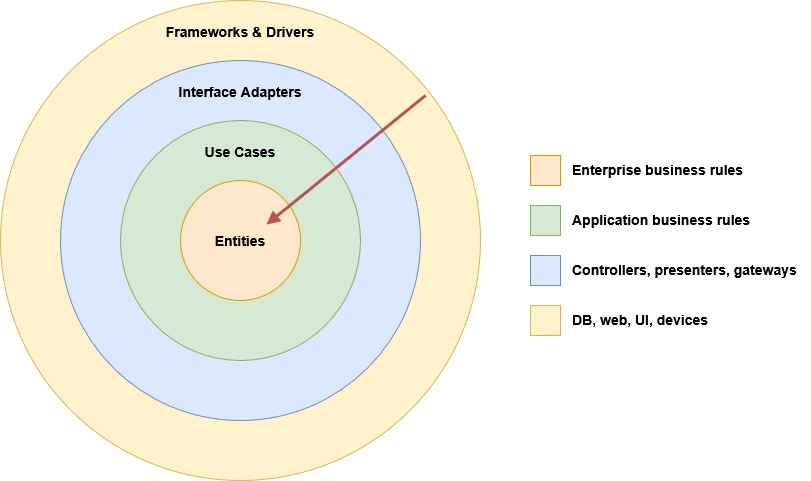

This is the most famous picture in software architecture.

You’ve seen it. You could probably redraw it from memory.

And here’s the claim that organizes this whole course: being able to redraw it has almost nothing to do with being able to build clean software.

The Diagram in Thirty Seconds

Let’s give the diagram its due, because the vocabulary is genuinely useful.

At the center are Entities — the enterprise-wide business rules, the things that would be true about your domain even if the application didn’t exist. Around them sit the Use Cases — application-specific rules that orchestrate the entities to do something a user wants. Outside those are the Interface Adapters — the controllers, presenters, and gateways that translate between the use cases and the outside world. And on the outermost ring live the Frameworks & Drivers — the database, the web framework, the UI, everything that is a detail rather than a decision.

That’s the what.

Why the Picture Isn’t the Skill

The diagram tells you which categories of thing exist and roughly where they live. It does not tell you the how: how, concretely, in C#, do you make an inner ring depend on nothing in an outer ring when the inner ring obviously needs to save data to a database that lives on the outside?

And it does not tell you the when: does this particular feature need a use-case class and an entity with behavior, or is it a lookup so trivial that wrapping it in ceremony makes the code worse?

Almost every Clean Architecture mess traces back to someone who mastered the picture and never learned the how and the when. They created the four projects, drew the four rings on the team wiki, and then put all the actual logic in controllers anyway — because the diagram never told them not to.

The One Arrow That Matters

So if the rings aren’t the point, what is?

Look at the figure again and ignore everything except that one bold arrow. Source-code dependencies point inward, always.

That single rule — the Dependency Rule — is the entire load-bearing idea. Everything else in Clean Architecture, and everything else in this course, is a consequence of taking that arrow seriously. We’ll spend all of Module 2 on the arrow alone, because once you truly understand it, the rings draw themselves.

The Question We’ll Keep Asking

There’s a second idea we’ll carry alongside the arrow, and it’s a question rather than a rule: did this abstraction earn its place?

Every time we add an interface, a layer, or a mapping step, we’ll stop and justify it against the pain it removes. If it doesn’t remove real pain, it doesn’t go in.

That habit — not the diagram — is what separates architecture from cargo-culting, and it’s why the back third of this course is devoted to judgment calls and failure modes rather than more boxes and arrows.

Clean Architecture also didn’t arrive from nowhere, and it isn’t the only reasonable option.

Before we commit to its vocabulary, the next lesson lays out the whole landscape honestly — so that when we make a choice, you know exactly what we’re choosing against.
